4 x 420kW
SUPRA CHARGER
Product Specification
DC Input
| Input Range | 500V to 1150V DC |
| Max. Input Current | 640A |
DC Output
| max Output Power | 420kW |
| Output Voltage Range | 200V to 950V DC |
Liquid Cooling
| Input liquid temperature | -20°C to +50°C |
| Flow rate | 110 to 150l/min |
| Liquid | Water /Glycol (60%/40%) |
Environment
| Storage temperature | －40℃～＋70℃ |
| Communication | WIFI, Ethernet, OCCP |
| MTBF | >500,000 hours |
| Safety | EU: IEC 61851-1, IEC 61851-23 |
| EMC | EU: 2014/30/EU |
| Dimension | tbd |
4 x 420kW
SUPRA CHARGER
Product Specification
DC Input
| Input Range | 500V to 1150V DC |
| Max. Input Current | 640A |
DC Output
| max Output Power | 420kW |
| Output Voltage Range | 200V to 950V DC |
Liquid Cooling
| Input liquid temperature | -20°C to +50°C |
| Flow rate | 110 to 150l/min |
| Liquid | Water /Glycol (60%/40%) |
Environment
| Storage temperature | －40℃～＋70℃ |
| Communication | WIFI, Ethernet, OCCP |
| MTBF | >500,000 hours |
| Safety | EU: IEC 61851-1, IEC 61851-23 |
| EMC | EU: 2014/30/EU |
| Dimension | tbd |

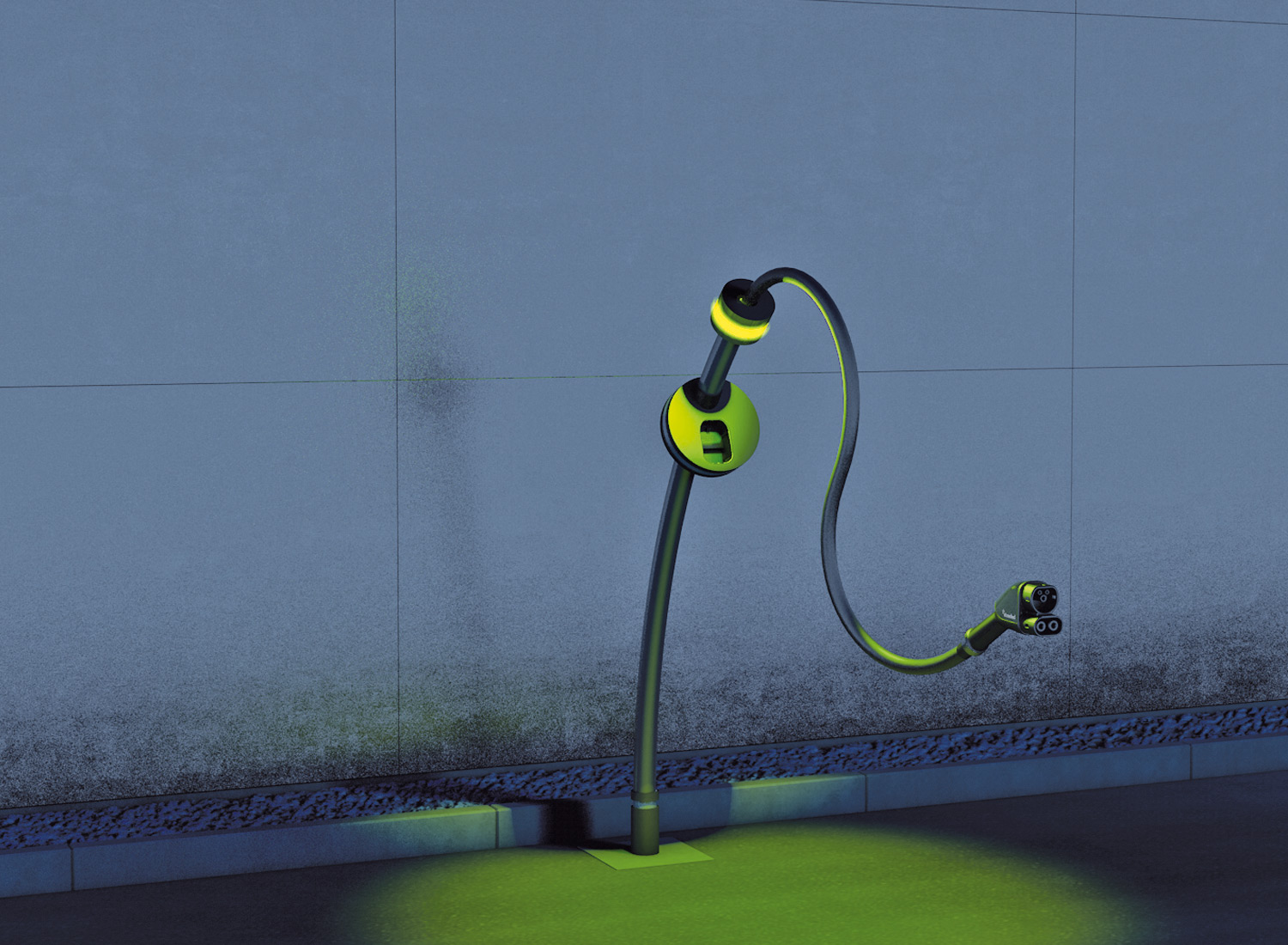

140kW
DC CHARGER
Product Specification
DC Input
| Input Range | 500V to 1150V DC |
| Max. Input Current | 215A |
DC Output
| max Output Power | 140kW |
| Output Voltage Range | 200V to 950V DC |
Liquid Cooling
| Input liquid temperature | -20°C to +50°C |
| Flow rate | 30 to 40l/min |
| Liquid | Water / Glycol (60%/40%) |
Environment
| Storage temperature | －40℃～＋70℃ |
| Communication | WIFI, Ethernet, OCCP |
| MTBF | >500,000 hours |
| Safety | EU: IEC 61851-1, IEC 61851-23 |
| EMC | EU: 2014/30/EU |
| Dimension | tbd |
140kW
DC CHARGER
Product Specification
DC Input
| Input Range | 500V to 1150V DC |
| Max. Input Current | 215A |
DC Output
| max Output Power | 140kW |
|
Output Voltage Range |
200V to 950V DC |
Liquid Cooling
| Input liquid temperature | -20°C to +50°C |
| Flow rate | 30 to 40l/min |
| Liquid | Water / Glycol (60%/40%) |
Environment
| Storage temperature | －40℃～＋70℃ |
| Communication | WIFI, Ethernet, OCCP |
| MTBF | >500,000 hours |
| Safety | EU: IEC 61851-1, IEC 61851-23 |
| EMC | EU: 2014/30/EU |
| Dimension | tbd |
70kW
DC WALL
Customate facade integration
Product Specification
DC Input
| Input Range | 500V to 1150V DC |
| Max. Input Current | 107A |
DC Output
| max Output Power | 70kW |
| Output Voltage Range | 200V to 950V DC |
Liquid Cooling
| Input liquid temperature | -20°C to +50°C |
| Flow rate | 15 to 20l/min |
| Liquid | Water / Glycol (60%/40%) |
Environment
| Storage temperature | －40℃～＋70℃ |
| Communication | WIFI, Ethernet, OCCP |
| MTBF | >500,000 hours |
| Safety | EU: IEC 61851-1, IEC 61851-23 |
| EMC | EU: 2014/30/EU |
| Dimension | tbd |
70kW
DC WALL
Customate facade integration
Product Specification
DC Input
| Input Range | 500V to 1150V DC |
| Max. Input Current | 107A |
DC Output
| max Output Power | 70kW |
| Output Voltage Range | 200V to 950V DC |
Liquid Cooling
|
Input liquid temperature |
-20°C to +50°C |
| Flow rate | 15 to 20l/min |
| Liquid | Water / Glycol (60%/40%) |
Environment
| Storage temperature | －40℃～＋70℃ |
| Communication | WIFI, Ethernet, OCCP |
| MTBF | >500,000 hours |
| Safety | EU: IEC 61851-1, IEC 61851-23 |
| EMC | EU: 2014/30/EU |
| Dimension | tbd |
35kW
DC RECTIFIER
Product Specification
DC Input
| Input Range | 500V to 1150V DC |
| Max. Input Current | 52,5A |
DC Output
| max Output Power | 35kW |
| Output Voltage Range | 200V to 950V DC |
Liquid Cooling
| Input liquid temperature | -20°C to +55°C |
| Flow rate | 8l/min |
Environment
| Storage temperature | －40℃～＋70℃ |
| Communication | CAN bus |
| MTBF | >500,000 hours |
| Safety | EU: IEC 61851-1, IEC 61851-23 |
| EMC | EU: 2014/30/EU |
| Dimension | 638x411x64mm^3 |
35kW
DC RECTIFIER
Product Specification
DC Input
| Input Range | 500V to 1150V DC |
| Max. Input Current | 52,5A |
DC Output
| max Output Power | 35kW |
| Output Voltage Range | 200V to 950V DC |
Liquid Cooling
| Input liquid temperature | -20°C to +55°C |
| Flow rate | 8l/min |
Environment
| Storage temperature | －40℃～＋70℃ |
| Communication | CAN bus |
| MTBF | >500,000 hours |
| Safety | EU: IEC 61851-1, IEC 61851-23 |
| EMC | EU: 2014/30/EU |
| Dimension | 638x411x64mm^3 |
